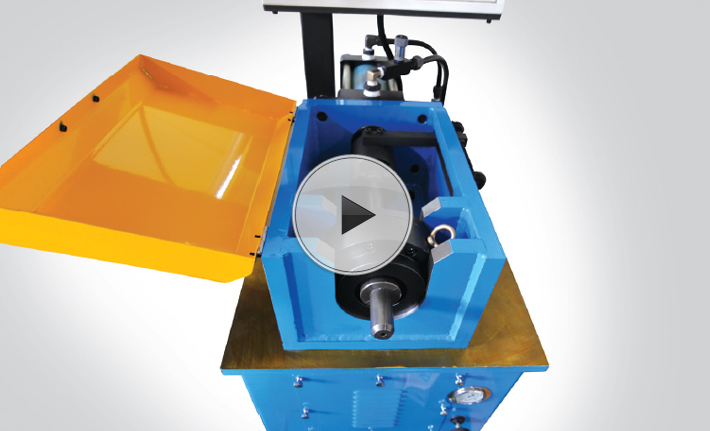

    Pipe Expanding Machine HWPE-100

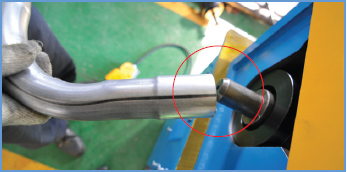

    Pipe Expanding Machine is to expand end of pipe diameter for muffler assembly.

           Function & Feature

    DESCRIPTION SPECIFICATION
    Size 1000mm×800mm×1200mm
    Voltage & Current 380V, 50Hz
    Control Type PLC Control Type
    Cooling Type Water Cooling Type
    Pressure Oil (70~140kgf/cm2)
    Hydraulic Pump Motor 11hp, 8kw
    Tact Time 10sec
