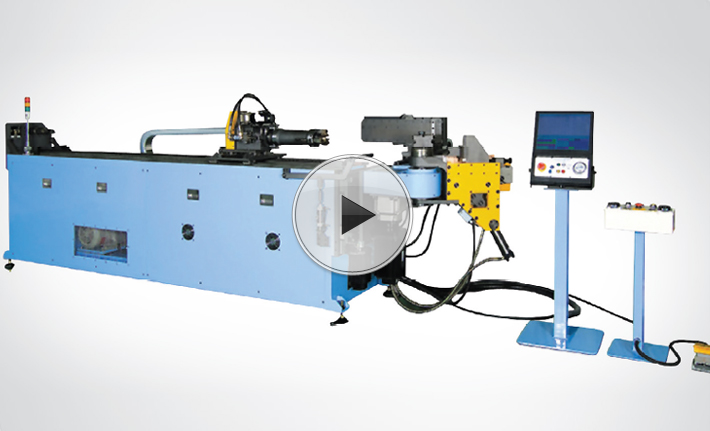

CNC Pipe Bending Machine

CNC Pipe Bending Machine

MODEL NPB15 NPB30 NPB50 NPB70 NPB90 Bending Capacity OD×T (SUS Pipe) Ø15×1.5T (Ø12×1.5T) Ø30×2.0T (Ø25×2.0T) Ø50×2.5T (Ø45×2.5T) Ø70×2.5T (Ø63×2.3T) Ø90×3.0T (Ø76.2×2.5T) Max Rad 70R 150R 220R 250R 250R Angle 190˚ 190˚ 190˚ 190˚ 190˚ Maximum Pipe Length(mm) 1,500 2,000 2,500 2,500 3,000 Servo Axis 5 Axis 6 Axis 10 Axis 10 Axis 10 Axis Speed Feeding(mm/Sec) 1,200 1,200 1,000 800 800 Rotating(˚/Sec) 360 360 270 270 240 Bending(˚/Sec) 200 180 110 90 80 Tolerance Feeding(±/mm) 0.1 0.1 0.1 0.1 0.1 Rotating(±/mm) 0.1 0.1 0.1 0.1 0.1 Bending(±/mm) 0.1 0.1 0.1 0.1 0.1 Power Hydraulic Motor(kW) 1.5 3.75       Tank(L) 30 60       Servo Motor(kW) 5.0 8.3 18 37.5 50 Total Power 3Ø 220V, 9.5kW 3Ø 220V, 15kW 3Ø 220V, 23kW 3Ø 220V, 45kW 3Ø 220V, 62kW Dimension Length(mm) 3,150 3,850 4,700 6,200 7,500 Width(mm) 680 720 820 1,650 2,500 Height(mm) 1,350 1,350 1,400 1,650 1,800 Weight(mm) 1,250 1,500 2,100 4,200 9,200
