Assembly Welding Line
M&E Line Up

  • Two Torch Welding
    Machine Bending Machine
  • Flange & Pipe
    Welding Machine
  • Robot Welding
    Machine
  • Vertical Turning
    Welding Machine
  • Vertical Turn-table
    Welding Machine
    •

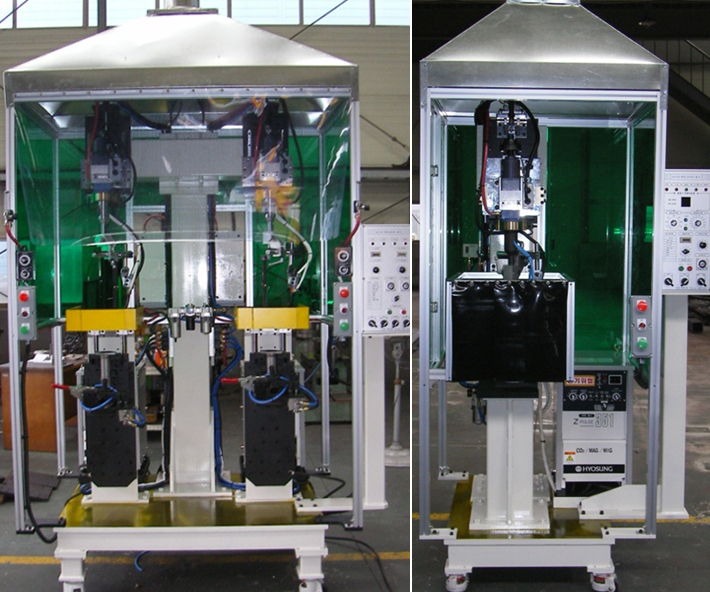

    Flange & Pipe Welding machine HWFPW-100

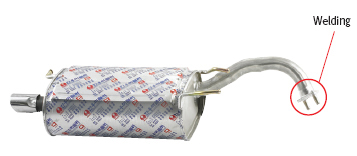

    Flange & Pipe Welding M/C是把管子和flange焊接的设备。 flange是把消声器前面的管子和中间的消声器，还有中间的消声器和后面的消声器连接起來的装置。


           Function & Feature

    DESCRIPTION SPECIFICATION
    Size 1100mm×1100mm×2200mm
    Voltage & Current 380V, 50Hz
    Control Type PLC Control Type
    Cooling Type Non
    Pressure Non
    Hydraulic Pump Motor 3hp, 2kw
    Tact Time 15~30sec
